Yoshitake
KBFV-1S

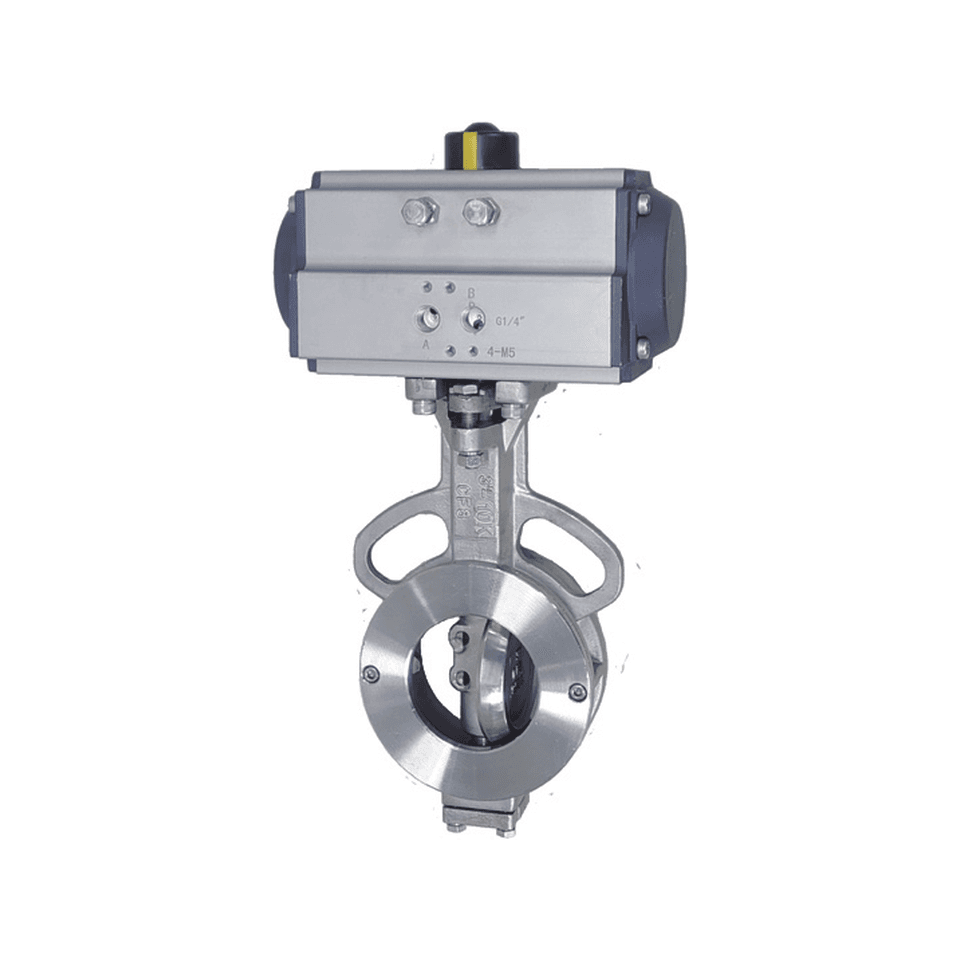

KBFV-1S Pneumatic Butterfly Valve
Explore the technical options.
Product summary
KBFV-1S
selection summary.
Use technical specifications to select an option for your application.
DN rangeDN50–DN150
Connection optionsWaferflange compatibility:EN PN16ASME 150JIS 10K
Technical options6
Technical specifications
Verified selection data.
Actuator ActionDouble Action
Body MaterialStainless Steel
Valve Seat MaterialPTFE
Actuator Mounting StandardNAMUR
Max Ambient Temperature80 °C
Min Ambient Temperature-20 °C
Application DetailSteam, air, water, oil and other non-dangerous fluids
Driving FluidAir, nitrogen gas
Product configurator
Technical option selection.
Narrow down the technical options step by step and request a quote for a suitable variant.
6 technical options
Your selectionKBFV-1S
Complete the selection steps to find a suitable product.
Show all technical options 6
| Nominal size | Connection | Quote |
|---|---|---|
| DN50 | Wafer | Request a Quote |
| DN65 | Wafer | Request a Quote |
| DN80 | Wafer | Request a Quote |
| DN100 | Wafer | Request a Quote |
| DN125 | Wafer | Request a Quote |
| DN150 | Wafer | Request a Quote |
