Yoshitake

PD-3

PD-3 Air Operated Angle-Seat Valve

Explore the technical options.

Select a variant for a quoteRequest product selection support →

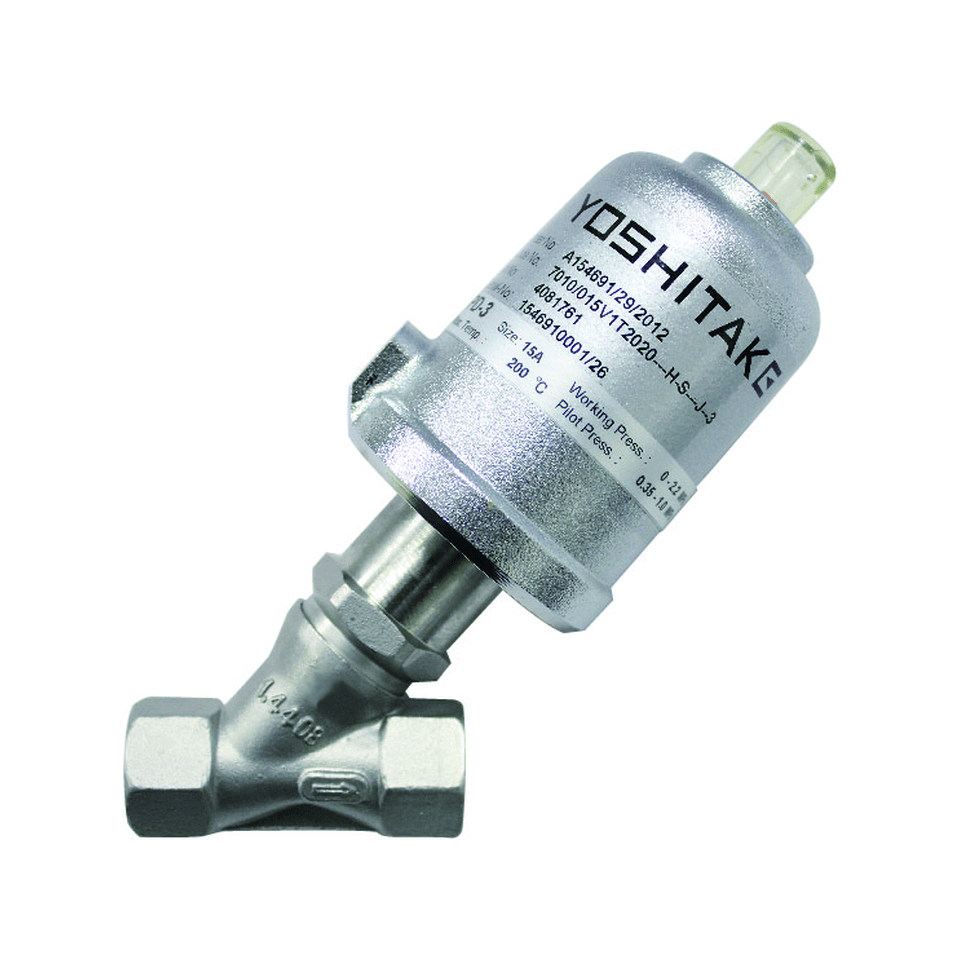

PD-3 Yoshitake product image

Product summary

PD-3
selection summary.

Use technical specifications to select an option for your application.

DN rangeDN15–DN50
Connection optionsBSPT
Technical options7

Technical specifications

Verified selection data.

Operation TypeNormally Closed
Body MaterialStainless Steel
Maximum Temperature200 °C
Max Ambient Temperature60 °C
Min Ambient Temperature-15 °C
Bonnet MaterialBrass, Chrome-plated
Installation Orientation NoteAny direction is available
Valve Disc MaterialPTFE

Product configurator

Technical option selection.

Narrow down the technical options step by step and request a quote for a suitable variant.

7 technical options
ConnectionBSPT
01Nominal size
02Maximum operating pressure
Your selectionPD-3

Complete the selection steps to find a suitable product.

Request product selection support →
Show all technical options 7
Nominal sizeMaximum operating pressureConnectionQuote
DN1522 barBSPTRequest a Quote
DN2013 barBSPTRequest a Quote
DN2522 barBSPTRequest a Quote
DN259 barBSPTRequest a Quote
DN3212 barBSPTRequest a Quote
DN4010 barBSPTRequest a Quote
DN507.5 barBSPTRequest a Quote
