Yoshitake

SB-1S

SB-1S Ball Type Sight Glass

Explore the technical options.

Select a variant for a quoteRequest product selection support →

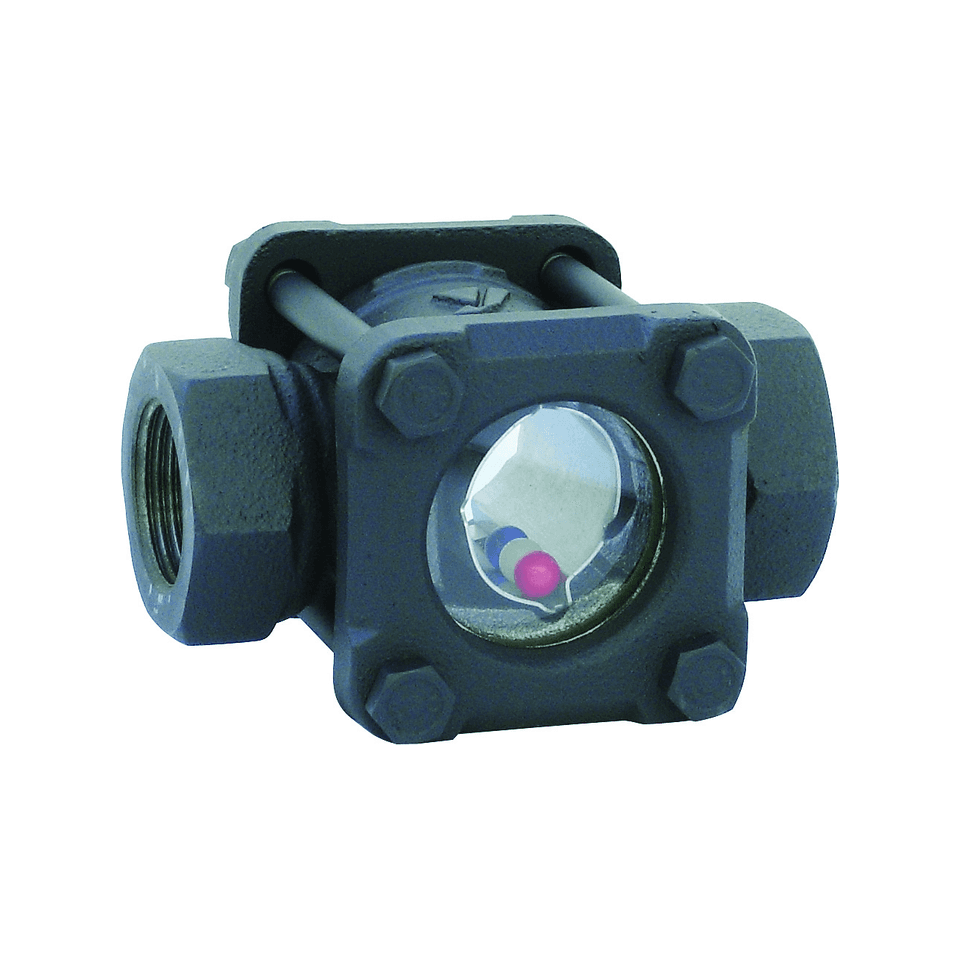

SB-1S Yoshitake product image

Product summary

SB-1S
selection summary.

Use technical specifications to select an option for your application.

DN rangeDN15–DN50
Connection optionsBSPT
Technical options6

Technical specifications

Verified selection data.

Body MaterialDuctile Cast Iron
Ball MaterialSynthetic Resin
Glass MaterialHardened Glass
Maximum Temperature85 °C
Maximum Operating Pressure10 bar
Application DetailCold and hot water
Consumable Parts NoteGlass part and balls are consumable parts.
Min Temperature5 °C

Product configurator

Technical option selection.

Narrow down the technical options step by step and request a quote for a suitable variant.

6 technical options
ConnectionBSPT
01Nominal size
Your selectionSB-1S

Complete the selection steps to find a suitable product.

Request product selection support →
Show all technical options 6
Nominal sizeConnectionQuote
DN15BSPTRequest a Quote
DN20BSPTRequest a Quote
DN25BSPTRequest a Quote
DN32BSPTRequest a Quote
DN40BSPTRequest a Quote
DN50BSPTRequest a Quote

Related models

Other models in this series.

SF-1SSF-1S Flap Type Sight GlassSL-1SSL-1S Plain Type Sight Glass
