Yoshitake

SCV-3

SCV-3 Wafer Type Check Valve

Explore the technical options.

Select a variant for a quoteRequest product selection support →

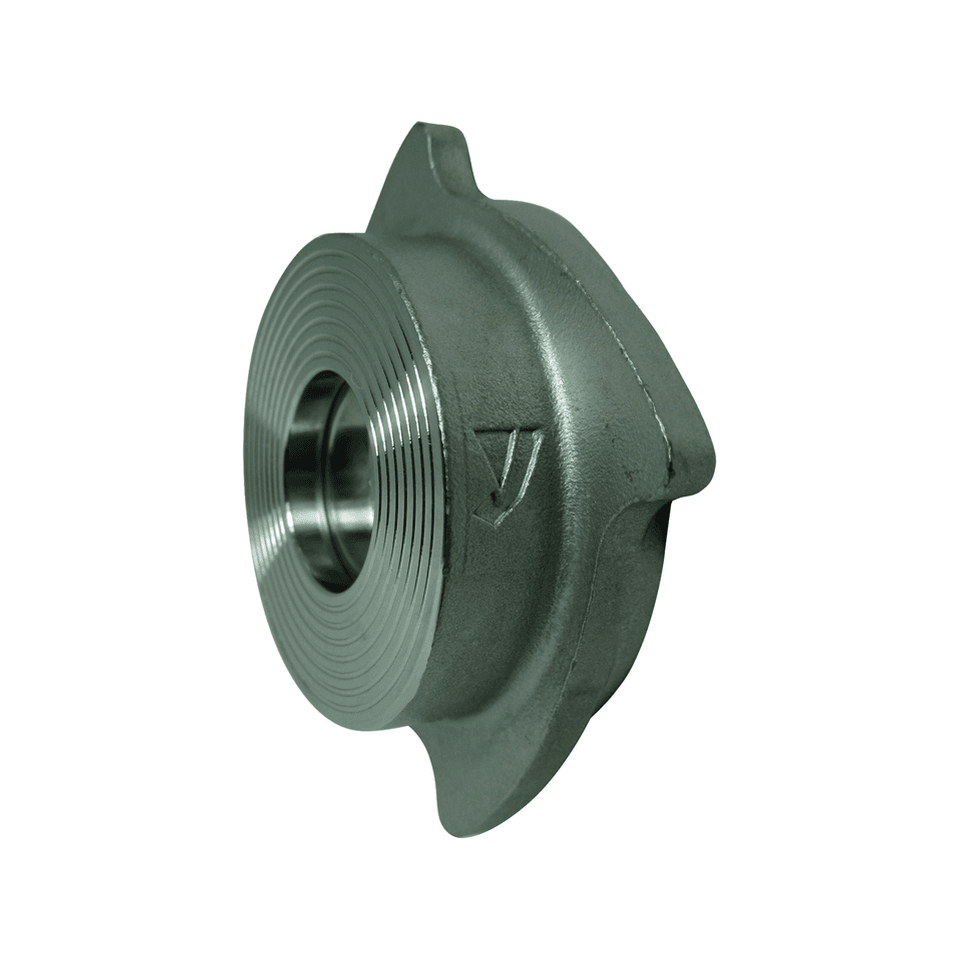

SCV-3 Yoshitake product image

Product summary

SCV-3
selection summary.

Use technical specifications to select an option for your application.

DN rangeDN15–DN100
Connection optionsWaferflange compatibility:EN PN6/10/16/25/40ASME/JPI 125/150/250/300JIS 5K/10K/16K/20K
Technical options9

Flange compatibility

Compatible flange standards.

The wafer body fits between flanges for the DN and flange-standard combinations shown below.

DNEN PNASME/JPIJIS
PN6PN10PN16PN25PN401251502503005K10K16K20K
DN15
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100

Technical specifications

Verified selection data.

Body MaterialStainless Steel
Disc MaterialStainless Steel
Maximum Temperature220 °C
Maximum Operating Pressure20 bar
Application DetailSteam, Cold and hot water
Installation Orientation NoteCan be connected in any direction (horizontal or vertical).
Minimum Opening Pressure0.03 bar

Product configurator

Technical option selection.

Narrow down the technical options step by step and request a quote for a suitable variant.

9 technical options
ConnectionWafer
01Nominal size
Your selectionSCV-3

Complete the selection steps to find a suitable product.

Request product selection support →
Show all technical options 9
Nominal sizeConnectionQuote
DN15WaferRequest a Quote
DN20WaferRequest a Quote
DN25WaferRequest a Quote
DN32WaferRequest a Quote
DN40WaferRequest a Quote
DN50WaferRequest a Quote
DN65WaferRequest a Quote
DN80WaferRequest a Quote
DN100WaferRequest a Quote
