Yoshitake

TB-20

Explore the technical options.

Select a variant for a quoteRequest product selection support →

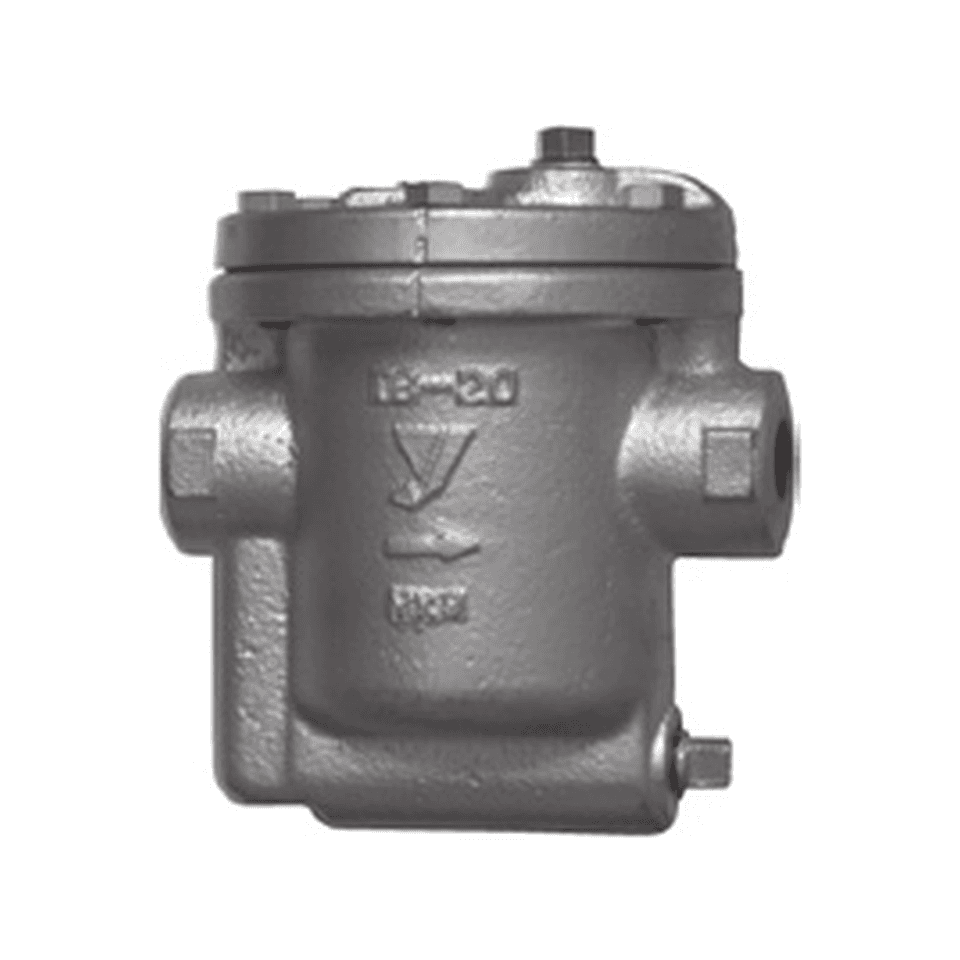

TB-20 Yoshitake product image

Product summary

TB-20
selection summary.

Use technical specifications to select an option for your application.

DN rangeDN15–DN25
Connection optionsBSPTNPT
Technical options24

Technical specifications

Verified selection data.

ApplicationSteam Condensate
Trap TypeInverted Bucket
Operating PrincipleInverted Bucket Operated
Body MaterialDuctile Cast Iron
Main Valve MaterialStainless Steel
Valve Seat MaterialStainless Steel
Maximum Temperature220 °C
Maximum Operating Pressure20 bar

Product configurator

Technical option selection.

Narrow down the technical options step by step and request a quote for a suitable variant.

24 technical options
01Nominal size
02Connection
03Maximum differential pressure
Your selectionTB-20

Complete the selection steps to find a suitable product.

Request product selection support →
Show all technical options 24
Nominal sizeConnectionMaximum differential pressureQuote
DN15BSPT3 barRequest a Quote
DN15BSPT6 barRequest a Quote
DN15BSPT10 barRequest a Quote
DN15BSPT16 barRequest a Quote
DN15NPT3 barRequest a Quote
DN15NPT6 barRequest a Quote
DN15NPT10 barRequest a Quote
DN15NPT16 barRequest a Quote
DN20BSPT3 barRequest a Quote
DN20BSPT6 barRequest a Quote
DN20BSPT10 barRequest a Quote
DN20BSPT16 barRequest a Quote
DN20NPT3 barRequest a Quote
DN20NPT6 barRequest a Quote
DN20NPT10 barRequest a Quote
DN20NPT16 barRequest a Quote
DN25BSPT3 barRequest a Quote
DN25BSPT6 barRequest a Quote
DN25BSPT10 barRequest a Quote
DN25BSPT16 barRequest a Quote
DN25NPT3 barRequest a Quote
DN25NPT6 barRequest a Quote
DN25NPT10 barRequest a Quote
DN25NPT16 barRequest a Quote
