Yoshitake

TSD-42F

Explore the technical options.

Select a variant for a quoteRequest product selection support →

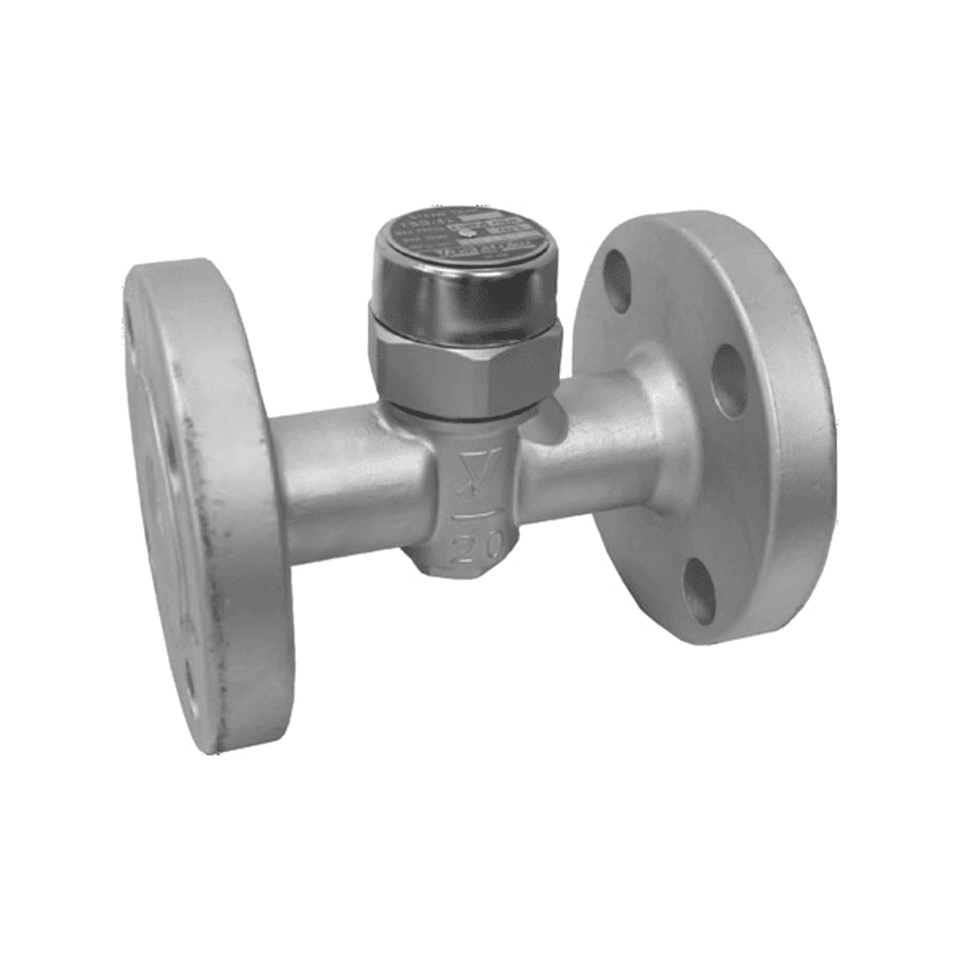

TSD-42F Yoshitake product image

Product summary

TSD-42F
selection summary.

Use technical specifications to select an option for your application.

DN rangeDN15–DN25
Connection optionsEN PN25EN PN40ASME 150ASME 300ASME 600JIS 10K RFJIS 20K RFJIS 30K RFJIS 40K RF
Technical options12

Technical specifications

Verified selection data.

ApplicationSteam Condensate
Trap TypeThermodynamic (Disc)
Operating PrincipleThermodynamic
Body MaterialSCS2A Stainless Steel
Disc MaterialStainless Steel
Minimum Differential Pressure0.35 bar
Allowable Back Pressure50% or less of inlet pressure

Product configurator

Technical option selection.

Narrow down the technical options step by step and request a quote for a suitable variant.

12 technical options
01Nominal size
02Connection
Your selectionTSD-42F

Complete the selection steps to find a suitable product.

Request product selection support →
Show all technical options 12
Nominal sizeConnectionQuote
DN15JIS 10K RFRequest a Quote
DN15JIS 20K RFRequest a Quote
DN15JIS 30K RFRequest a Quote
DN15JIS 40K RFRequest a Quote
DN20JIS 10K RFRequest a Quote
DN20JIS 20K RFRequest a Quote
DN20JIS 30K RFRequest a Quote
DN20JIS 40K RFRequest a Quote
DN25JIS 10K RFRequest a Quote
DN25JIS 20K RFRequest a Quote
DN25JIS 30K RFRequest a Quote
DN25JIS 40K RFRequest a Quote

Related models

Other models in this series.

TSD-42TSD-42TSF-8TSF-8TSF-8FTSF-8FTSF-10TSF-10TSF-10FTSF-10FTSF-11TSF-11
