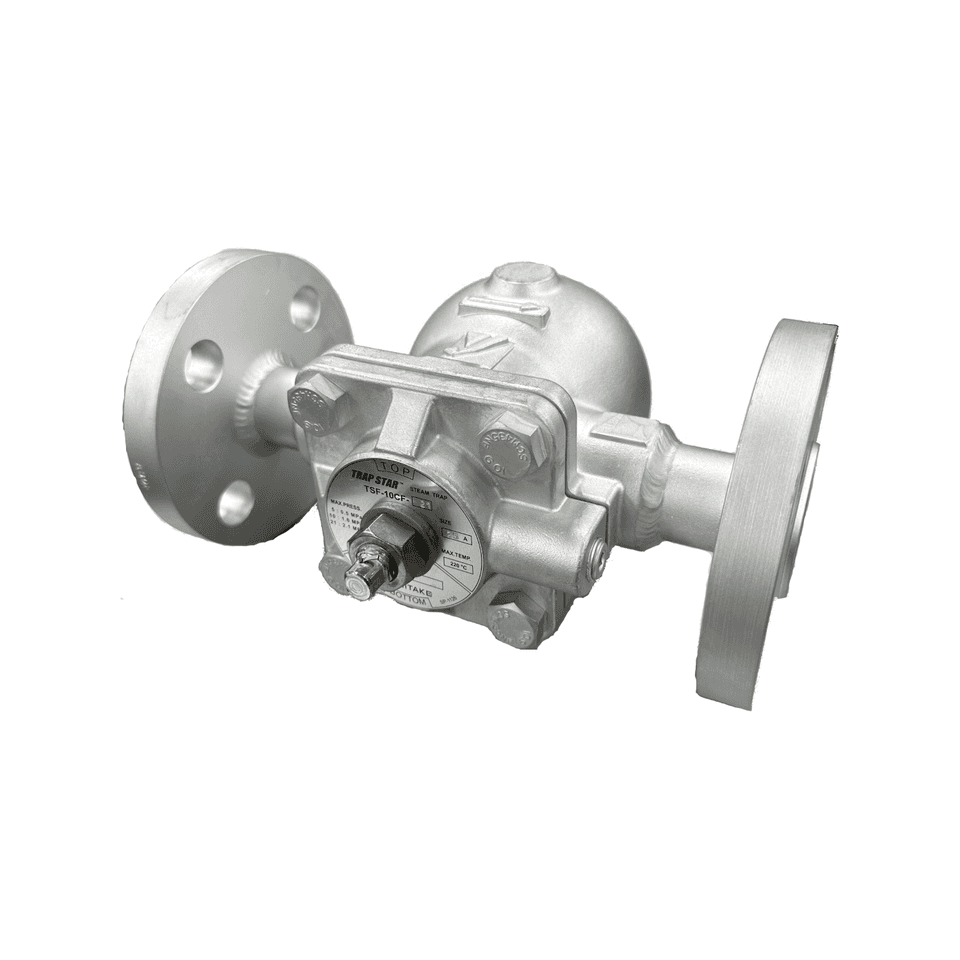

Yoshitake
TSF-10CF
Explore the technical options.
Product summary
TSF-10CF
selection summary.
Use technical specifications to select an option for your application.
DN rangeDN15–DN25
Connection optionsEN PN16EN PN25/40ASME 150ASME 300JIS 30K RF
Technical options27
Technical specifications
Verified selection data.
ApplicationSteam Condensate
Trap TypeFloat
Operating PrincipleFloat Operated
Body MaterialCast Carbon Steel
Valve Seat MaterialStainless Steel
Float MaterialStainless Steel
Maximum Temperature240 °C
Product configurator
Technical option selection.
Narrow down the technical options step by step and request a quote for a suitable variant.
27 technical options
Your selectionTSF-10CF
Complete the selection steps to find a suitable product.
Show all technical options 27
| Nominal size | Connection | Maximum differential pressure | Quote |
|---|---|---|---|
| DN15 | ASME 150 | 10 bar | Request a Quote |
| DN15 | ASME 150 | 5 bar | Request a Quote |
| DN15 | ASME 300 | 10 bar | Request a Quote |
| DN15 | ASME 300 | 32 bar | Request a Quote |
| DN15 | ASME 300 | 5 bar | Request a Quote |
| DN15 | EN PN25/40 | 10 bar | Request a Quote |
| DN15 | EN PN25/40 | 32 bar | Request a Quote |
| DN15 | EN PN25/40 | 5 bar | Request a Quote |
| DN15 | JIS 30K RF | 32 bar | Request a Quote |
| DN20 | ASME 150 | 10 bar | Request a Quote |
| DN20 | ASME 150 | 5 bar | Request a Quote |
| DN20 | ASME 300 | 10 bar | Request a Quote |
| DN20 | ASME 300 | 32 bar | Request a Quote |
| DN20 | ASME 300 | 5 bar | Request a Quote |
| DN20 | EN PN25/40 | 10 bar | Request a Quote |
| DN20 | EN PN25/40 | 32 bar | Request a Quote |
| DN20 | EN PN25/40 | 5 bar | Request a Quote |
| DN20 | JIS 30K RF | 32 bar | Request a Quote |
| DN25 | ASME 150 | 10 bar | Request a Quote |
| DN25 | ASME 150 | 5 bar | Request a Quote |
| DN25 | ASME 300 | 10 bar | Request a Quote |
| DN25 | ASME 300 | 32 bar | Request a Quote |
| DN25 | ASME 300 | 5 bar | Request a Quote |
| DN25 | EN PN25/40 | 10 bar | Request a Quote |
| DN25 | EN PN25/40 | 32 bar | Request a Quote |
| DN25 | EN PN25/40 | 5 bar | Request a Quote |
| DN25 | JIS 30K RF | 32 bar | Request a Quote |
