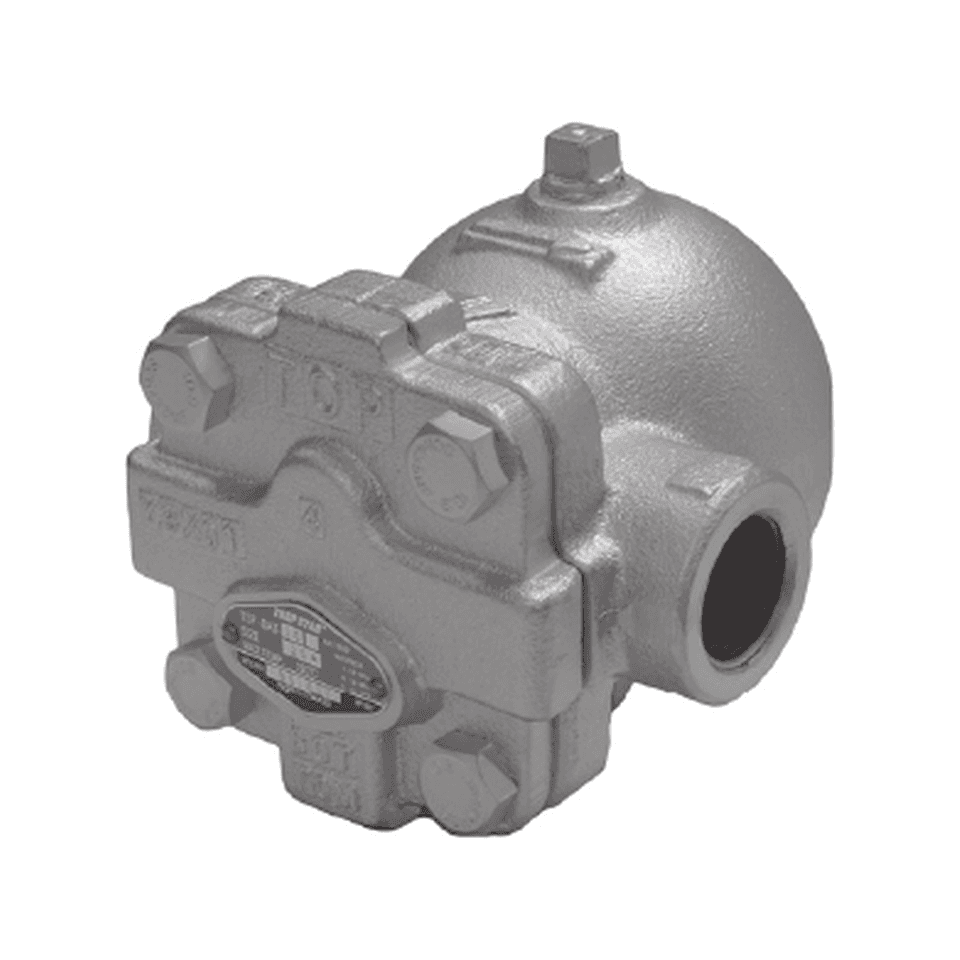

Yoshitake
TSF-8AT
Explore the technical options.
Product summary
TSF-8AT
selection summary.
Use technical specifications to select an option for your application.
DN rangeDN15–DN25
Connection optionsBSPTNPT
Technical options36
Technical specifications
Verified selection data.
ApplicationCondensate
Trap TypeFloat
Operating PrincipleFloat Operated
Body MaterialDuctile Cast Iron
Valve Seat MaterialStainless Steel
Float MaterialStainless Steel
Maximum Temperature220 °C
Product configurator
Technical option selection.
Narrow down the technical options step by step and request a quote for a suitable variant.
36 technical options
Your selectionTSF-8AT
Complete the selection steps to find a suitable product.
Show all technical options 36
| Nominal size | Connection | Maximum differential pressure | Flow direction | Quote |
|---|---|---|---|---|
| DN15 | BSPT | 10 bar | Soldan Sağa | Request a Quote |
| DN15 | BSPT | 10 bar | Sağdan Sola | Request a Quote |
| DN15 | BSPT | 21 bar | Soldan Sağa | Request a Quote |
| DN15 | BSPT | 21 bar | Sağdan Sola | Request a Quote |
| DN15 | BSPT | 5 bar | Soldan Sağa | Request a Quote |
| DN15 | BSPT | 5 bar | Sağdan Sola | Request a Quote |
| DN15 | NPT | 10 bar | Soldan Sağa | Request a Quote |
| DN15 | NPT | 10 bar | Sağdan Sola | Request a Quote |
| DN15 | NPT | 21 bar | Soldan Sağa | Request a Quote |
| DN15 | NPT | 21 bar | Sağdan Sola | Request a Quote |
| DN15 | NPT | 5 bar | Soldan Sağa | Request a Quote |
| DN15 | NPT | 5 bar | Sağdan Sola | Request a Quote |
| DN20 | BSPT | 10 bar | Soldan Sağa | Request a Quote |
| DN20 | BSPT | 10 bar | Sağdan Sola | Request a Quote |
| DN20 | BSPT | 21 bar | Soldan Sağa | Request a Quote |
| DN20 | BSPT | 21 bar | Sağdan Sola | Request a Quote |
| DN20 | BSPT | 5 bar | Soldan Sağa | Request a Quote |
| DN20 | BSPT | 5 bar | Sağdan Sola | Request a Quote |
| DN20 | NPT | 10 bar | Soldan Sağa | Request a Quote |
| DN20 | NPT | 10 bar | Sağdan Sola | Request a Quote |
| DN20 | NPT | 21 bar | Soldan Sağa | Request a Quote |
| DN20 | NPT | 21 bar | Sağdan Sola | Request a Quote |
| DN20 | NPT | 5 bar | Soldan Sağa | Request a Quote |
| DN20 | NPT | 5 bar | Sağdan Sola | Request a Quote |
| DN25 | BSPT | 10 bar | Soldan Sağa | Request a Quote |
| DN25 | BSPT | 10 bar | Sağdan Sola | Request a Quote |
| DN25 | BSPT | 21 bar | Soldan Sağa | Request a Quote |
| DN25 | BSPT | 21 bar | Sağdan Sola | Request a Quote |
| DN25 | BSPT | 5 bar | Soldan Sağa | Request a Quote |
| DN25 | BSPT | 5 bar | Sağdan Sola | Request a Quote |
| DN25 | NPT | 10 bar | Soldan Sağa | Request a Quote |
| DN25 | NPT | 10 bar | Sağdan Sola | Request a Quote |
| DN25 | NPT | 21 bar | Soldan Sağa | Request a Quote |
| DN25 | NPT | 21 bar | Sağdan Sola | Request a Quote |
| DN25 | NPT | 5 bar | Soldan Sağa | Request a Quote |
| DN25 | NPT | 5 bar | Sağdan Sola | Request a Quote |
