Yoshitake
VB-7

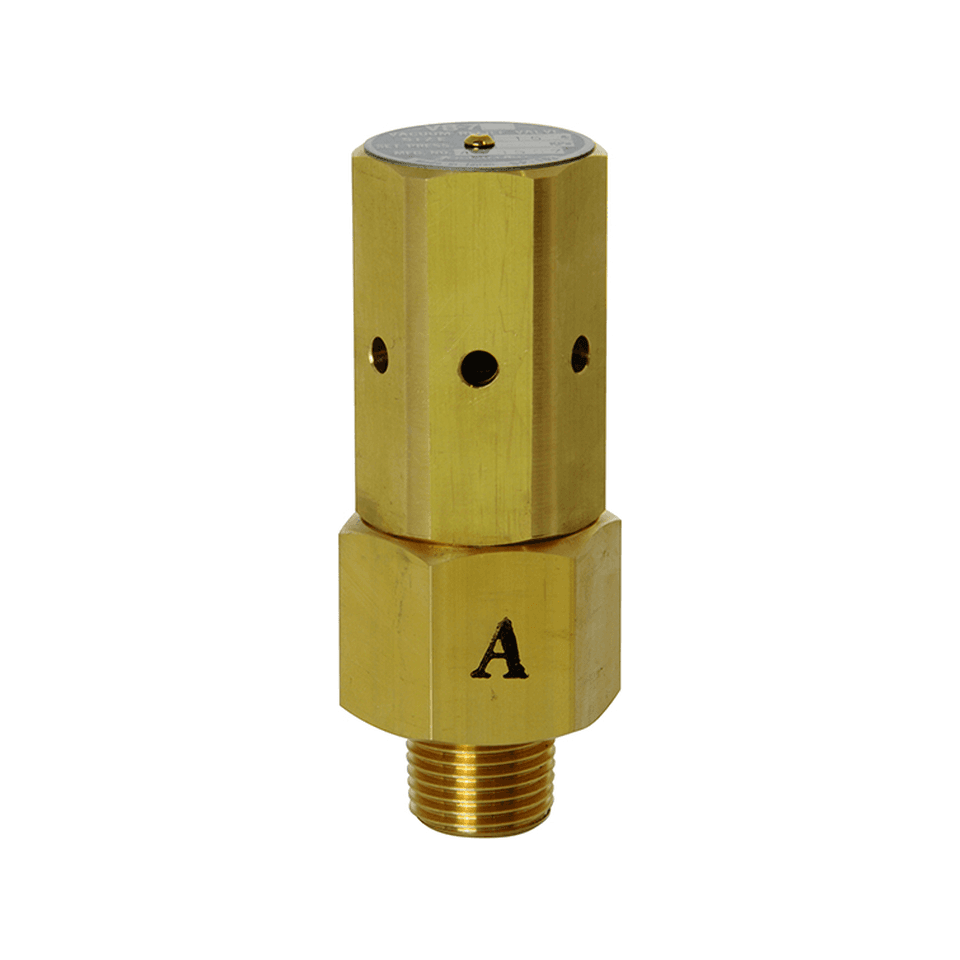

VB-7 Vacuum Relief Valve
Explore the technical options.
Product summary
VB-7
selection summary.
Use technical specifications to select an option for your application.
DN rangeDN15–DN50
Connection optionsBSPT
Technical options18
Technical specifications
Verified selection data.
Body MaterialBrass
Main Valve MaterialBronze
Valve Seat MaterialBrass
Maximum Temperature200 °C
Maximum Operating Pressure10 bar
Application DetailSteam, Air
Inlet Connection StandardBSPT
Inlet Thread GenderMale
Product configurator
Technical option selection.
Narrow down the technical options step by step and request a quote for a suitable variant.
18 technical options
Your selectionVB-7
Complete the selection steps to find a suitable product.
Show all technical options 18
| Nominal size | Vacuum setting range | Connection | Quote |
|---|---|---|---|
| DN15 | A · -21 … -0.5 kPa | BSPT | Request a Quote |
| DN15 | B · -48 … -21 kPa | BSPT | Request a Quote |
| DN15 | C · -81 … -48 kPa | BSPT | Request a Quote |
| DN20 | A · -21 … -0.5 kPa | BSPT | Request a Quote |
| DN20 | B · -48 … -21 kPa | BSPT | Request a Quote |
| DN20 | C · -81 … -48 kPa | BSPT | Request a Quote |
| DN25 | A · -21 … -0.5 kPa | BSPT | Request a Quote |
| DN25 | B · -48 … -21 kPa | BSPT | Request a Quote |
| DN25 | C · -81 … -48 kPa | BSPT | Request a Quote |
| DN32 | A · -21 … -0.5 kPa | BSPT | Request a Quote |
| DN32 | B · -48 … -21 kPa | BSPT | Request a Quote |
| DN32 | C · -81 … -48 kPa | BSPT | Request a Quote |
| DN40 | A · -21 … -0.5 kPa | BSPT | Request a Quote |
| DN40 | B · -48 … -21 kPa | BSPT | Request a Quote |
| DN40 | C · -81 … -48 kPa | BSPT | Request a Quote |
| DN50 | A · -21 … -0.5 kPa | BSPT | Request a Quote |
| DN50 | B · -48 … -21 kPa | BSPT | Request a Quote |
| DN50 | C · -81 … -48 kPa | BSPT | Request a Quote |
